HSEP::Library Class Reference

Base class encapsulating the operating system mechanism to load dynamic libraries and their exported functions. More...

#include <Library.h>

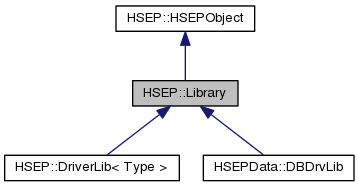

Inheritance diagram for HSEP::Library:

Collaboration diagram for HSEP::Library:

Public Member Functions
	Library (const char *pType, string &pPath)
	Constructs and loads the library pointed by pPath.
	~Library ()
	Unloads the library and clean the related data structures.
void	invalidate ()
	Makes the library to be in invalid state, unloading any loaded material.
Public Member Functions inherited from HSEP::HSEPObject
string &	lastErrorRef ()
	Returns a reference to the last stored error message.
ErrorCode	lastCode ()
	Returns the last stored code.
bool	valid ()
	Permits to know if the object has a valid internal state.
string &	typeRef ()
	Permits to know the type of this particular object.

Protected Member Functions
void *	getMethodPtr (string &pMethodNameRef)
	Returns a pointer to the specified method is contained in the loaded dynamic library.
Protected Member Functions inherited from HSEP::HSEPObject
	HSEPObject (const char *pType)
	Constructor, providing the base for the state controlling instance.
virtual	~HSEPObject ()
void	setLastError (string &pErrorMsgRef)
	Assigns an error message text to the last executed operation.
void	setLastError (const string &pErrorMsgRef)
	Assigns an error message text to the last executed operation.
void	setLastError (const char *pErrorMsg)
	Assigns an error message text to the last executed operation.
void	setValid ()
	Defines that the object has a valid state.
void	setInvalid ()
	Defines that the object has an invalid state.
void	setLastCode (const ErrorCode pErrorCode)
	Defines the internal result code for the object.

Protected Attributes
void *	aHandlerPtr
	The library handler.

Detailed Description

Base class encapsulating the operating system mechanism to load dynamic libraries and their exported functions.

Definition at line 37 of file Library.h.

Constructor & Destructor Documentation

HSEP::Library::Library	(	const char *	pType,
		string &	pPath
	)

Constructs and loads the library pointed by pPath.

Parameters

pType	String describing the type of library is being loaded.
pPath	The full path to load the library to be loaded.

todo: A more extensive checking on the loaded library to prevent further problems.

Definition at line 28 of file Library.cpp.

References aHandlerPtr, HSEP::HSEPObject::setInvalid(), HSEP::HSEPObject::setLastError(), and HSEP::HSEPObject::setValid().

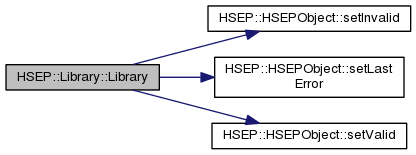

Here is the call graph for this function:

HSEP::Library::~Library

(

)

Unloads the library and clean the related data structures.

Definition at line 46 of file Library.cpp.

References aHandlerPtr, and HSEP::HSEPObject::valid().

Here is the call graph for this function:

Member Function Documentation

void * HSEP::Library::getMethodPtr ( string &  pMethodNameRef )

protected

Returns a pointer to the specified method is contained in the loaded dynamic library.

Parameters

pMethodNameRef

Returns

the specified method (must be type-casted to be used).

nullptr in the case the method is not contained within the library.

Definition at line 54 of file Library.cpp.

References aHandlerPtr, and HSEP::HSEPObject::valid().

Here is the call graph for this function:

void HSEP::Library::invalidate

(

)

Makes the library to be in invalid state, unloading any loaded material.

Definition at line 65 of file Library.cpp.

References aHandlerPtr, HSEP::HSEPObject::setInvalid(), and HSEP::HSEPObject::valid().

Here is the call graph for this function:

Member Data Documentation

void* HSEP::Library::aHandlerPtr

protected

The library handler.

In this level is managed as a generic pointer (void*) to deal with the particular characteristics for different operating systems.

Definition at line 45 of file Library.h.

Referenced by getMethodPtr(), invalidate(), Library(), and ~Library().

---

The documentation for this class was generated from the following files:

• Library.h
• Library.cpp
